SOLID RESILIENT TYRES

Solid Resilient Tyres provide solid grip even on the roughest surfaces

Puncture-proof toughness
Maintenance-free
Superior shock absorption for smoother driving
Heat resistant compound minimises wear and tear
High load-carrying capacity
Reduced rolling resistance
Uncompromising stability
Your vehicles suffer less down time
Economically sound alternative

Tyres you can fit and forget about

Solid Resilient Tyres are designed to offer consistency and reliability. Every tyre undergoes rigorous physical and chemical testing which ensures that each and every tyre coming out of the warehouse is ready for the tough demands of industry. The step by step pre-production control system with strict inspections at every turn means that you can simply fit our tyres and rest easy!

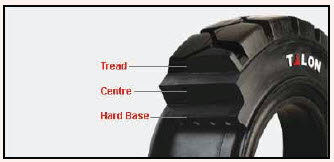

Construction

The tyres are constructed using 3 stage process which guarantees optimum performance.

Tread

The sturdy Natural Rubber compound combined with the unique tread design ensures improved stability, traction and braking in all conditions whilst not compromising on wear. Available in more than 10 different formulations, to suit all applications and operating conditions

Centre

The resilient center Natural Rubber compound is a soft compound which is designed to reduce heat build up and increase the tyre's life. The elastic property at the Centre of the tyre is shock absorbent, allowing your equipment to be safe from impact and thereby increasing the life of your vehicle, also providing greater comfort for the driver.

In addition, this layer helps in reducing the rolling resistance of the tyre.

SPECIFICATIONS

		TYRE SPECIFICATIONS
TYRE SIZE	TYRE TYPE		RIM	TREAD	TYRE DIMENSIONS IN MM			TYRE LOAD CAPACITY ON FORK LIFTS, KG AT 25 KMPH
					OUTER DIA	SIDEWALL WIDTH	TREAD WIDTH	LOAD WHEEL	STEER WHEEL
3.00-4	S		2.10	RIB	245	85	75	260	195
4.00-4	S		2.50	RIB	300	92	84	535	412

4.00-8	S		2.50	RIB	402	103	86	950	730
4.00-8	S		3.00	M&I	402	103	86	950	730
4.00-8	S		3.75	RIB	405	119	86	950	730
15X4 ½ -8	S/CL		3.00	M&I	368	105	90	1040	800
5.00-8	S/CL/AP		3.00	M&I	450	120	110	1415	1090
5.00-8	S		3.75	RIB	450	125	110	1415	1090
16X6-8	S/CL		4.33	M&I	406	140	125	1270	975
18X7-8	S/CL/AP		4.33	M&I	450	157	142	2145	1650

140/55-9	CL		4.00	M&I	376	125	110	1170	900
6.00-9	S/AP		4.00	M&I	520	138	120	1885	1450
21X8-9	S/CL/AP		6.00	M&I	517	188	157	2755	2120

200/50-10	CL		6.50	M&I	454	190	160	2470	1900
6.50-10	S/CL/AP		5.00	M&I	566	160	140	2340	1800
23X9-10	S/CL		6.50	M&I	580	194	178	3160	2430

7.00-12	S/CL/AP		5.00	M&I	646	172	150	2920	2240
23X10-12	S/CL		8.00	M&I	580	232	200	3770	2900
27X10-12	S/CL		8.00	M&I	672	240	200	3900	3000

7.00-15	S		5.50	M&I	705	180	158	3545	2725
7.00-15	S		6.00	M&I	705	180	158	3545	2725
7.50-15	S		6.00	M&I	736	196	168	3900	3000
7.50-15	S		6.50	M&I				3900	3000
8.15-15 28X9-15	S/CL/AP		7.00	M&I	678	221	190	3445	2650
8.25-15	S/CL/AP		6.50	M&I	808	192	173	4750	3650

		TYRE SPECIFICATIONS
TYRE SIZE	TYRE TYPE		RIM	TREAD	TYRE DIMENSIONS IN MM			TYRE LOAD CAPACITY ON FORK LIFTS, KG AT 25 KMPH
					OUTER DIA	SIDEWALL WIDTH	TREAD WIDTH	LOAD WHEEL	STEER WHEEL
3.00-4	S		2.10	RIB	245	85	75	260	195
4.00-4	S		2.50	RIB	300	92	84	535	412

4.00-8	S		2.50	RIB	402	103	86	950	730
4.00-8	S		3.00	M&I	402	103	86	950	730
4.00-8	S		3.75	RIB	405	119	86	950	730
15X4 ½ -8	S/CL		3.00	M&I	368	105	90	1040	800
5.00-8	S/CL/AP		3.00	M&I	450	120	110	1415	1090
5.00-8	S		3.75	RIB	450	125	110	1415	1090
16X6-8	S/CL		4.33	M&I	406	140	125	1270	975
18X7-8	S/CL/AP		4.33	M&I	450	157	142	2145	1650

140/55-9	CL		4.00	M&I	376	125	110	1170	900
6.00-9	S/AP		4.00	M&I	520	138	120	1885	1450
21X8-9	S/CL/AP		6.00	M&I	517	188	157	2755	2120

200/50-10	CL		6.50	M&I	454	190	160	2470	1900
6.50-10	S/CL/AP		5.00	M&I	566	160	140	2340	1800
23X9-10	S/CL		6.50	M&I	580	194	178	3160	2430

7.00-12	S/CL/AP		5.00	M&I	646	172	150	2920	2240
23X10-12	S/CL		8.00	M&I	580	232	200	3770	2900
27X10-12	S/CL		8.00	M&I	672	240	200	3900	3000

7.00-15	S		5.50	M&I	705	180	158	3545	2725
7.00-15	S		6.00	M&I	705	180	158	3545	2725
7.50-15	S		6.00	M&I	736	196	168	3900	3000
7.50-15	S		6.50	M&I				3900	3000
8.15-15 28X9-15	S/CL/AP		7.00	M&I	678	221	190	3445	2650
8.25-15	S/CL/AP		6.50	M&I	808	192	173	4750	3650

		TYRE SPECIFICATIONS
TYRE SIZE	TYRE TYPE		RIM	TREAD	TYRE DIMENSIONS IN MM			TYRE LOAD CAPACITY ON FORK LIFTS, KG AT 25 KMPH
					OUTER DIA	SIDEWALL WIDTH	TREAD WIDTH	LOAD WHEEL	STEER WHEEL
2.50-15	S/CL		7.00	M&I	706	220	190	4745	3650
2.50-15	S		7.50	M&I	706	220	190	4745	3650
3.00-15	S/CL/AP		8.00	M&I	806	242	223	5850	4500
28X12.5-15	S/CL		9.75	M&I	705	275	255	5525	4250
3.50-15	S/CL		9.75	M&I	810	285	265	7000	5450

8.25-20	S		6.50	M&I	915	200	180	4380	3650
9.00-20	S		7.00	M&I	972	226	191	5400	4500
10.00-20	S/CL		7.00	M&I	1004	250	203	6000	5000
10.00-20	S/CL		7.50	M&I	1004	250	203	6000	5000
10.00-20	S/CL		7.50	SM	1050	265	235	6000	5000
10.00-20	S/CL		8.00	M&I	1004	250	203	6000	5000
10.00-20	S/CL		8.00	SM	1050	265	235	6000	5000
10.00-20	S/CL		8.50	M&I	1004	250	203	6000	5000
10.00-20	S/CL		8.50	SM	1050	265	235	6000	5000
12.00-20	S/CL		8.00	M&I	1080	255	232	7560	6300
12.00-20	S/CL		8.00	SM	1140	295	250	7560	6300
12.00-20	S/CL		8.50	M&I	1080	255	232	7560	6300
12.00-20	S/CL		8.50	SM	1140	295	250	7560	6300

12.00-24	S		8.50	M&I	1165	265	230	8040	6700
12.00-24	S		10.00	M&I	1165	285	245	8280	6900
14.00-24	S		10.00	M&I	1275	308	270	11100	9250

17.5-25	S/AP		14.00	D	1350	440	400	9680	8000
20.5-25	S/AP		17.00	D	1491	522	500	10890	9000
23.5-25	S/AP		19.50	D	1620	600	570	12100	10000
29.5-25	SAP		25.00	D	1839	760	735	24200	20000
	s= Standard Resilent Tyre		AP= Apertyre Tyre		CL= Click Tyre	All tyres are availabe in Non Marking
